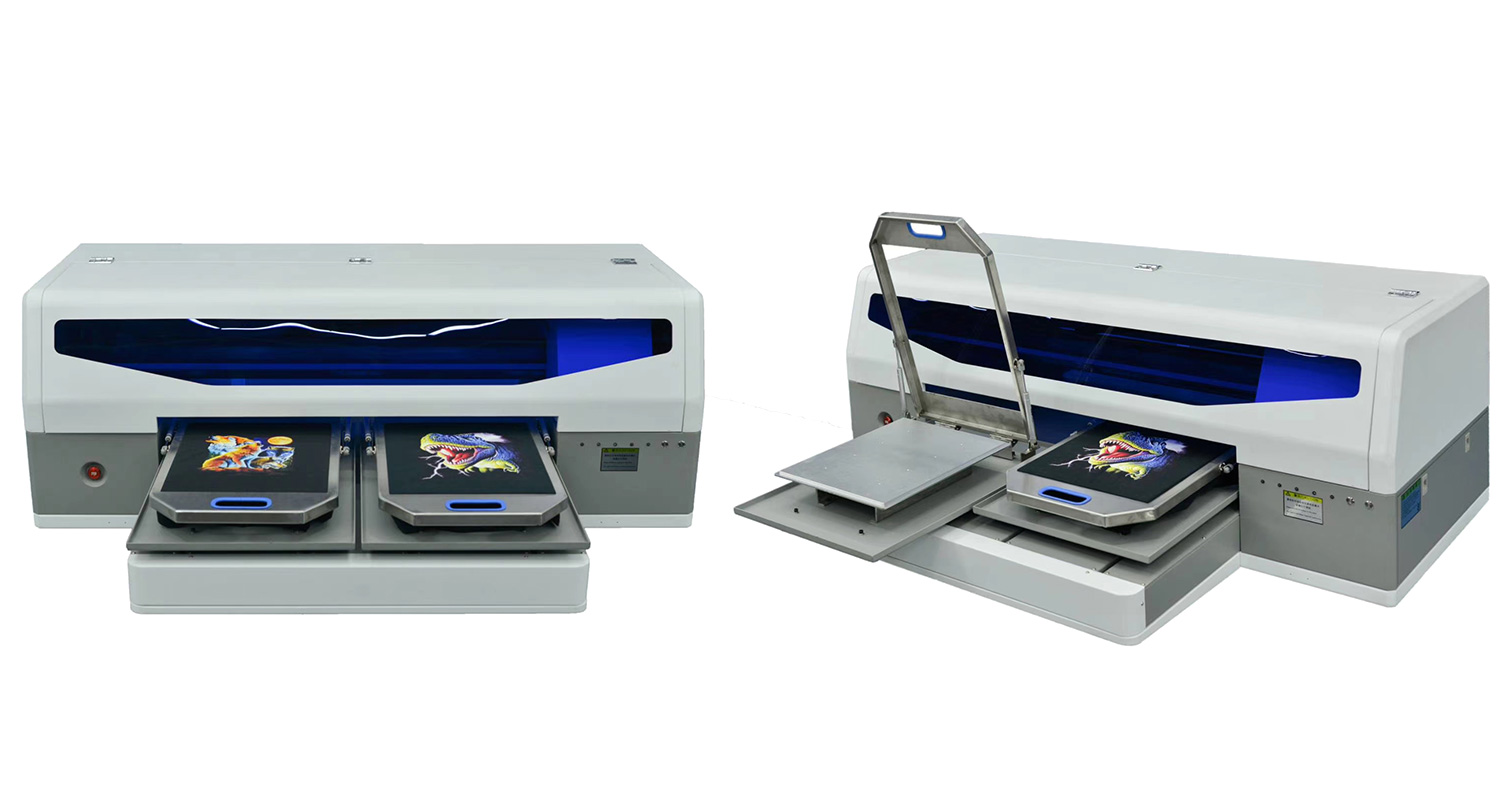

INKGIANT new arrival DTGX7 printer with double epson 4720 head

Zhengzhou Bigfoot Digital Technology Co.,Ltd.

INKGIANT new arrival DTGX7 printer with double epson 4720 head
Items Specification
Machine model BF-DTGX7
Printhead  Double epson 4720 print head
Ink type Water based pigment ink
RIP software RIPRINT
Printing size 350*450mm
The maximum thickness 30mm
The maximum weight 20KG
Printing resolution 720dpi*2400dpi*3600dpi
Speed A4 size pc/30 seconds
Capacity 120pcs T-shrit/hour
Printer size 1285mm*1635mm*632mm
Printer packaging size 1366mm*1746mm*891mm
Printer net weight 123KG
Printer gross weight 143KG
Power requirement 110-220V, 650W
Interface  USB2.0/IEE1394
Computor system Windows XP/7, MAC
Working condition 20-35℃, 50-80% humidity
Application Pure cotton,blended facbric, leather, garment, cut-parts and so on
Printer feature 1.High-precision motor+imported guide rail, use high precision motor control system and sensor system, and high quality rail slider module made of high strength pressed rusty steel,
not rust, beautiful apperance, and realizes precision controlling for horizontal and vertical.
2.Adopt epson original 4720 print head, matched with micro piezo electric printhead precise ink droplet size control system not only accurate ink drop volume,
but also high positioning accuracy, realizing photo image fine details.
3.The white ink circulation system makes ink more stable, continuous printing without break line, no clogging head.
And reduce much cost of replacing head.
