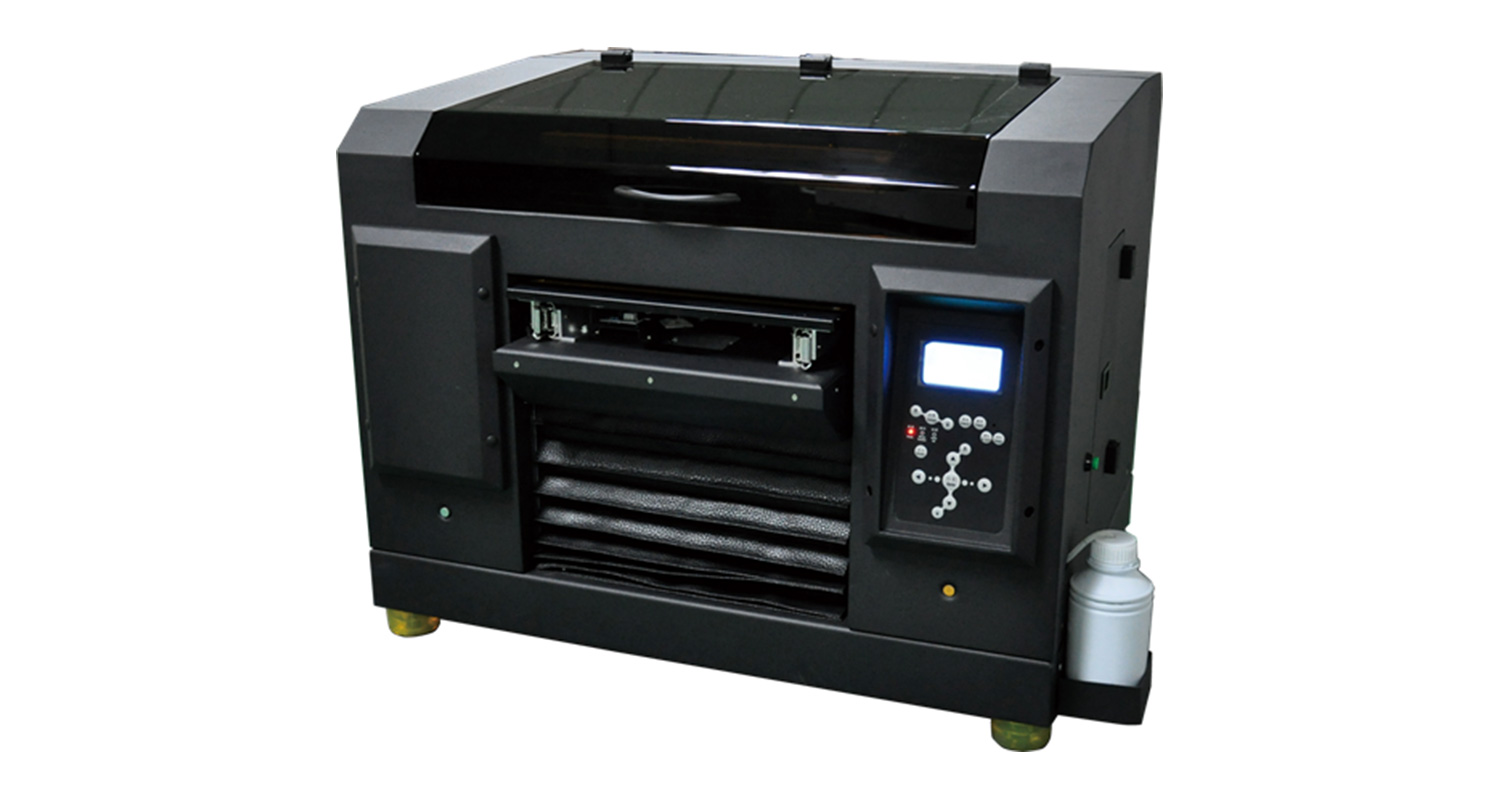

INKGIANT DTGA3 printer with epson DX5 head
| INKGIANT DTGA3 printer with epson DX5 head | |
| Items | Specification |
| Machine model | BF-DTGA3 |
| Printhead | epson DX5 print head |
| Ink type | Water based pigment ink |
| Color | WWWW+CMYK |
| RIP software | Photoprint |
| Printing size | 320mm*580mm |
| The maximum thickness | 12cm |
| The maximum weight | 5KG |
| Printing resolution | 2880dpi*1440dpi*720 dpi |
| Speed | 1pc/3mins |
| Capacity | 20pcs T-shrit/hour |
| Printer size | 83CMx90CM x58CM |
| Printer packaging size | 107cm*102cm*80cm |
| Printer net weight | 61KG |
| Printer gross weight | 101KG |
| Power requirement | 110-220V 50-60HZ 300W |
| Interface | USB2.0/IEE1394 |
| Computor system | Windows XP/7, MAC |
| Working condition | 20-35℃, 50-80% humidity |
| Application | Pure cotton,blended facbric, leather, garment, cut-parts and so on |
| Printer feature |
1.Whole aluminum frame: keep the stand completely flat and the platform error does not exceed 0.05, alignment accuracy is 100% 2.The white ink circulation system makes ink more stable, continuous printing without break line, no clogging head. And reduce much cost of replacing head. 3.Infrared head induction device: effective protection of print head, not easy to scratch 4.Automatic cleaning of waste ink: one button, not easy to dirty hands and clothes 5.Many humanized designs: easy to maintain, no need to disassemble the shell 6.The printhead is more easy to maintain:The ink tube and sac is smooth going, which will not cause insufficient ink fluidity. It's also faster to replace the ink sac |
