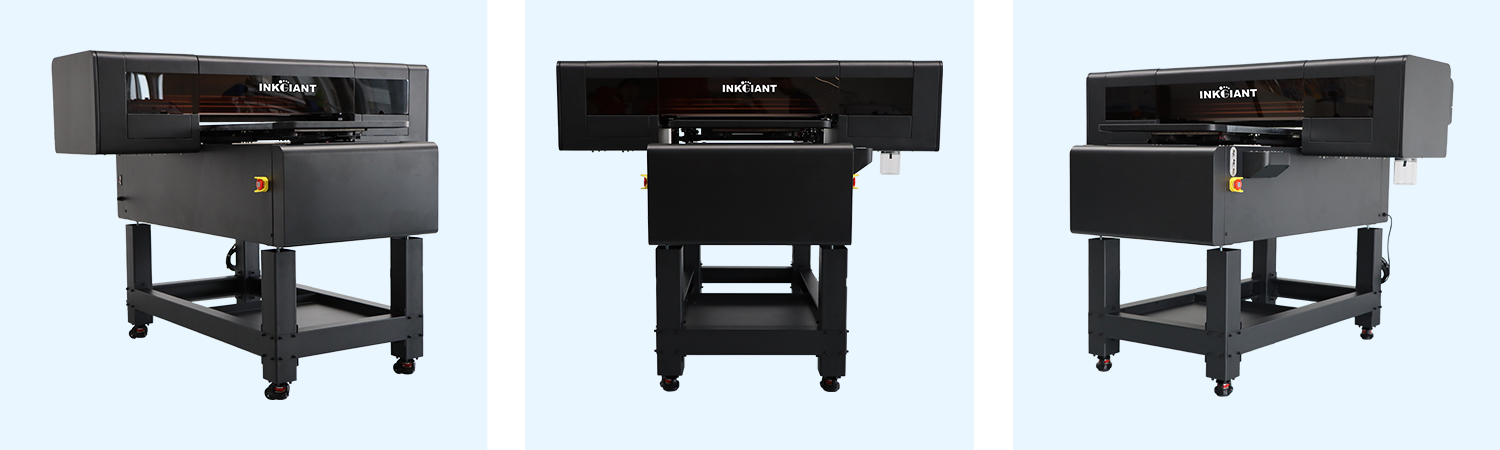

INKGIANT UV FLATBED Printer BF-UV6090
| Model Type | BF-UV6090 |
| Print head | 3pcs Epson I3200-U1 |
|
Resolution |
6pass: 720*1200DPI |
| 8pass: 720*1800DPI | |
| 12pass: 720*2400DPI | |
| Speed | 4-8m²/h |
| RIP software | FlexiPRINT |
| Color | CMYK+W+Varnish |
| Color control | ICC color profile with adjust function |
| Print width | 600mm*900mm |
| Ink | UV ink |
|
Operation Environment |
Temperature: 15℃-30℃ |
| Humidity: 40%-60% | |
| Power for printer | 50Hz/60Hz 110V/220V 10-20A |
| Operating system | Windows10 or Above |
| Application | Widely apply on paper/glass/ceramic/plastic etc. |
| Image format | Bitmap,Tiff,Jpeg,Eps,Pdf |
|
Printer |
Machine size: 1700*1545*1315mm(L*W*H) |
| Packing size: 1880*1625*870mm(L*W*H) | |
| Net weight: 240KG Gross weight: 320KG | |
|
Feathers |
1. High Precision Printing: Equipped with Epson I3200-U1 printhead for detailed prints up to 720x3600 DPI. |
| 2. Wide Media Compatibility: Capable of printing on glass, plates, acrylic plate, PVC, leather, and more. | |
| 3. Efficient Curing: Utilizes UV LED air cooling for fast and energy-efficient curing. | |
| 4. Advanced Positioning: Features CCD visual positioning for accurate alignment and printing. |
